Aima Big Sur
Details

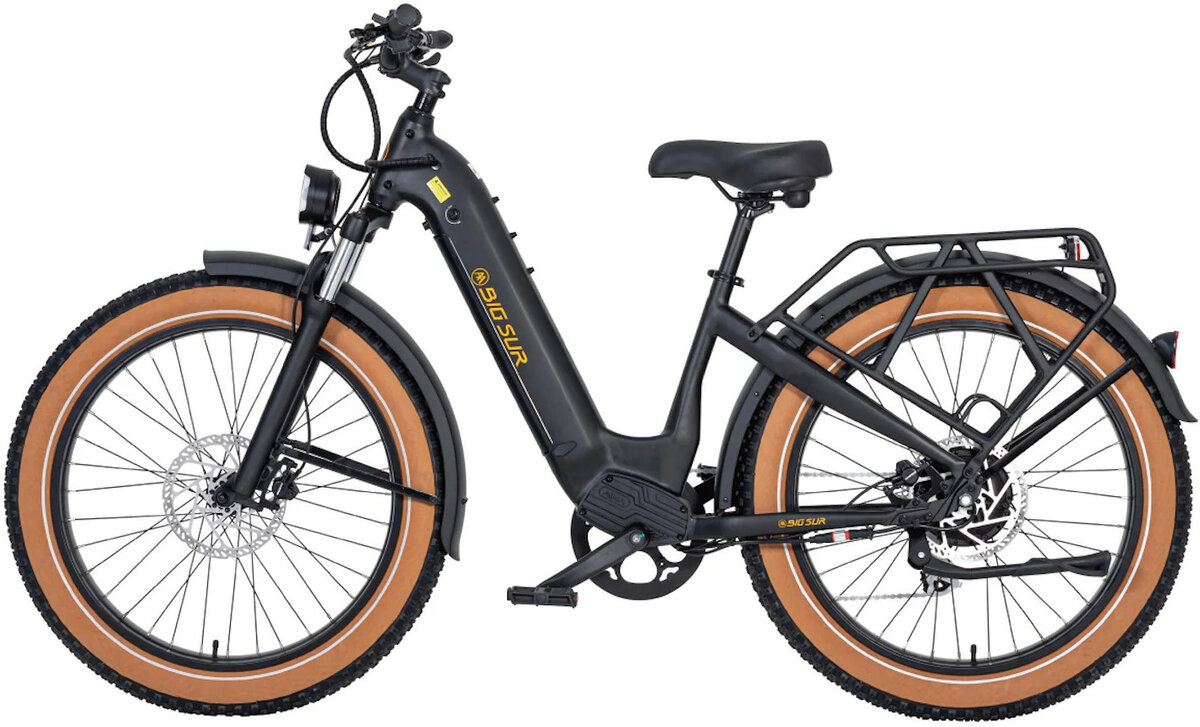

Big Sur is a 26 x 4” fat tire all-terrain e-bike, equipped with a powerful 750W Bafang rear hub motor. Big Sur is Class 2/3, meaning it'll take you up to 20mph using the throttle, and 28mph while pedaling. A specially-designed big headlight, extra-large 203mm brake rotors, LG 21700 battery cells, and a full UL2849 certification make Big Sur one of the safest e-bikes on the market. Sporting a bigger 52T crankset for stability at speed and a custom AIMA Comfort XL seat, Big Sur provides riders with a remarkably comfortable and smooth riding experience.
MODEL - Big Sur
MOTOR - 750W (Rated) / 1200W (Peak) , 48V Brushless Rear Hub Motor
THROTTLE - Throttle on Demand
DISPLAY - Color LCD, Smart Easy-to-Read Display with Backlight
SPEED - Up to 28 MPH Pedal Assist, 20 MPH Throttle Only
BATTERY - Removable Internal Lithium-ion 48V, 15Ah (720Wh) with LG M50LT 21700 cells
REAR RACK - MIK HD
SENSORS - Torque Sensor
PEDAL ASSIST - 5 Levels
CHARGER - 48V 3 Amp Fast Charger, about 5 Hours to a Full Charge
RANGE - 30 to 60 Miles
FRAME - 6061 Single-Butted Aluminum Alloy Frame with Internal Battery
WEIGHT - 82 lbs. ( Battery included)
PEDALS - 9/16' Alloy Platform
FORK - Suspension Fork with 80mm travel, with lockout
WEIGHT LIMIT - 400 lbs.
KICKSTAND - Included, Aluminum Alloy Kickstand
CRANKSET - 170mm w/ 52T
SHIFT - Shimano 8 Speed
GEAR RATIO RANGE - 11-34T
BRAKES - Tektro Hydraulic Disc Brakes
ROTOR - 203 mm
CHAIN - 130 Link, 8 Speed
RIM - Double Wall Aluminum Alloy
SPOKES - Black Stainless 12G Front / 12G Rear
TUBES - Butyl Rubber
HUBS - Front Aluminum Alloy Disc Hub
TIRES - 26" x 4" Puncture Resistant
SADDLE - AIMA Comfort, 280mm*270mm Saddle
SEATPOST - Aluminum Alloy, 30.4mm 2-Bolt Clamp
STEM - Threadless, 31.8mm, 7 Degree Rise, Ext 75mm
SEAT CLAMP - 34.9 mm Quick Release
HANDLEBARS - Aluminum Alloy Double Wall, 31.8mm, 680mm
HEADSET - Sealed Bearing Headset
GRIPS - Ergonomic Comfort
