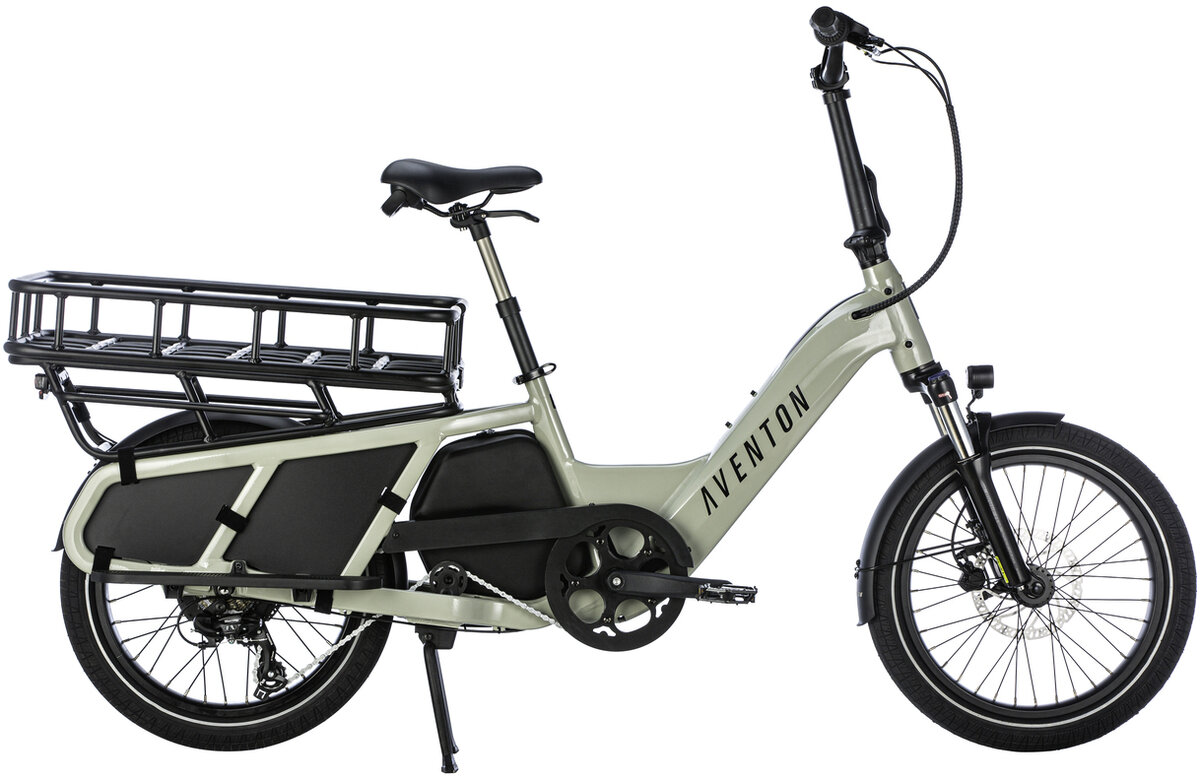

Aventon Abound - 2023

Aventon Abound
  • Color: Polaris Blue, Sage Green
  • Color: Polaris Blue, Sage Green
$2,199.00
Color:
Polaris Blue, Sage Green
Please select options
This product is not available for online purchase. Please call us or visit our store.

Details

Haul it all with the Abound, Aventon’s first ever cargo ebike! Its versatility and step-through frame puts the you in you-tility. Rack it, stack it, and load the kiddos, too! Equipped with a torque sensor and powerful 750W rear hub motor, getting around with everything you need in tow has never been easier. Let Abound do most of the heavy lifting by switching between the four new pedal assist levels: eco, tour, sport, and turbo. The all-new turn signal functionality alerts others that you’re making moves, while the front headlight sheds light on the road ahead. With Abound, the possibilities are boundless.

MOTOR - 750W (Sustained), 48V Brushless Rear Hub Motor
THROTTLE - Throttle on demand - Throttle from a complete stop
DISPLAY - LCD Smart Easy Read Display with Backlight, Colorful screen with app
SPEED - Up to 20 MPH on Pedal Assist
BATTERY - Removable Internal Lithium-ion 48V, 15Ah (720Wh)
SENSORS - Torque Sensor
PEDAL ASSIST - 4 Levels
CHARGER - 48V 3 Amp Fast Charger, 4-5 Hour Charging
RANGE - Up to 50 Miles* on PAS 22 Miles on Throttle
FRAME - 6061 Single-Butted Aluminum Alloy with Internal Battery
WEIGHT - 81 lbs
PEDALS - 9/16' Alloy Platform
FORK - Suspension Fork with 50mm travel, with lockout
TOTAL WEIGHT LIMIT - 440 lbs
REAR RACK WEIGHT LIMIT - 143 lbs
CENTER STAND - Included, Center Mount
BOTTOM BRACKET - Square Taper, Sealed, Torque Sensor
CRANKSET - 170mm w/ 52 T
REAR DERAILLEUR - 7 Speed
CASSETTE - 14-28T, 7 Speed
SHIFT LEVER - 7 Speed Twist
BRAKES - Hydraulic Disc Brakes
CHAIN - 148 Link, 7 Speed
RIM - Double Wall Aluminum 36h Front & Rear
SPOKES - Black Stainless 13G Front / 12G Rear
TUBES - Butyl Rubber, Schrader Valve
HUBS - 36H Disc Nutted Front, Nutted Rear
TIRES - 20" x 2.4" Puncture Resistant, Reflective Sidewalls
SADDLE - Aventon Saddle
SEATPOST - Dropper Seatpost, 30.9mm x 440mm
STEM - Folding, Height Adjustable, 31.8mm, 9 Degree Rise
SEAT CLAMP - 34.9 mm Quick Release
HANDLEBARS - Aluminum 31.8mm, 700mm
HEADSET - Sealed Bearing Headset
GRIPS - Ergonomic Comfort
FOOTBOARDS - Aluminum
STORAGE BAG - Polyester, EVA Waterproof
DIMENSIONS - Bike Box Dimensions: 167 cm x 37 cm x 73 cm Built Bike Dimensions: 1910 mm (l) x 1125 mm (h)
SIZE & FIT
Abound comes in 1 size and fits most adults from 4’11 “ - 6’3”.
Frame Size - One size fits all
Top Tube Length - 613mm
Reach - 426mm
Head Tube Length - 174mm
Standover Height - 472mm
Wheelbase - 1274mm
Min Saddle Height - 770mm
Max Saddle Height - 970mm
